SIB-K One RJ45 jack connection to LED +/-, 4pin JST connector for accessory connections

Smart Interface Block, Series LED power circuit, no case

Switched Voltage Driver for STRIPS, Dimmable, 50W, 24-48V, 1.2A, High-side Switch

Basic switch input module. No communications, no dimming.

Enclosure Wiring Harness for 1-4 PDM & AC/DC Supply

Smart Interface Block, Parallel LED power circuit, snap case. Common Anode(+) for CCT

Wall TouchPad, 4 button, 1111 layout, Decora

Wall Switch, Decora shape

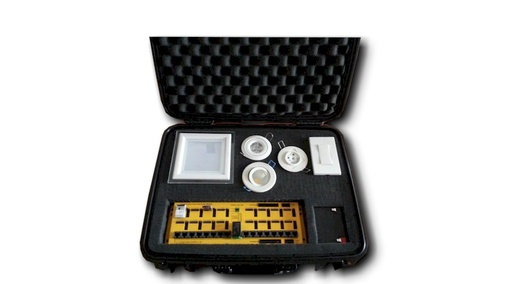

Replace/refresh your LibRE (or Legacy) dealer kit with a brand new ReNetA Construction Lighting kit for just $99 plus the cost of shipping. Kit validation required. Receive a coupon for $100 in credit for any ReNetA products. Limit 1 per customer with LibRE demo kit. Connects to any 12-48VDC supply including cordless tool battery adapters. Includes:

(1) PPC-2-DCDC-1224-240W_R(1)
(1) CPDB-8_RJ1F(485.1)
(2) F0001-000-44W-000_J1FS(485.1)
(3) F0002-000-05W-000_J1FS(485.1)
(1) SW-D_J(485.1) (WH: White)
(4) Cat6 23AWG Bootless Patch Cable, Plenum, Tipped and Tested (25ft)
(2) Cat6 23AWG Bootless Patch Cable, Plenum, Tipped and Tested (5ft)
(1) $100 Credit for ReNetA products

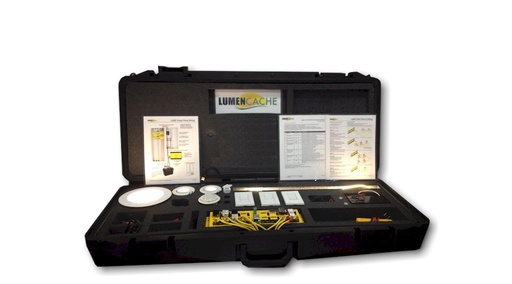

Replace/refresh your LibRE (or Legacy) dealer kit with a brand new ReNetA kit for just $199 plus the cost of shipping. Kit validation required. Receive a coupon for $200 in credit for ReNetA products. Limit 1 per customer with LibRE demo kit. Includes:

(1) PP-2_R(1)
(1) PDM-8_RJ(1)
(2) CC-30W_RJ2C+(485.1)
(1) SV-55W_RJ2S+(485.1)
(1) FV-55W_RJ1F(485.1)
(1) SW-D_J(485.1) (WH: White)
(1) SW-D-THA_J(485.1) (WH: White)
(1) SIB-SOCKET_J1SF(485.1)
(2) F0003-000-10W-011_J2C+(485.1) 4in regressed light
(1) F0005-000-12W-011_J2C+(485.1) 4in flat light
(2) E26-48V6W Bulb
(2) Cat6 Patch 25ft
(4) Cat6 Patch 3ft
(1) Coupon for $200 of ReNetA products

Bulb, 48V, MR16 base, Clear

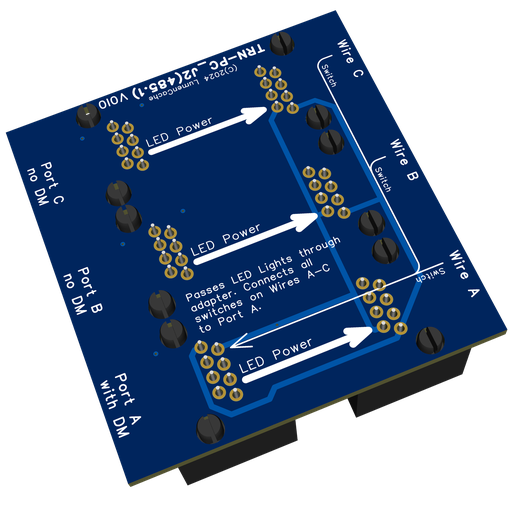

LibRE requires all switches controlling a single zone to be connected to the port that contains the L2-DM in the socket. If you have wired for ReNetA, which supports any wiring configuration for 3-way switches, this adapter can combine the switch signals from multiple wires into a single port so the switches can easily achieve 3-way and more, and the drivers for the other ports can power their lights. See the back of the adapter for the wiring explanation.
