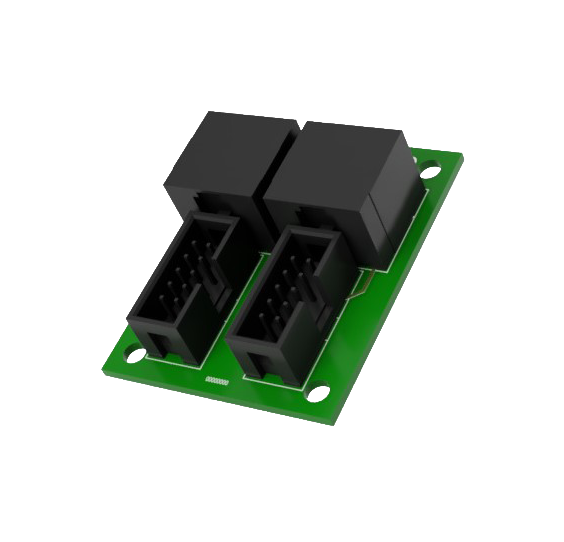

L2-CBA
Communication Bus Adapter to connect to another enclosure over Cat5
The PDM Bus can extend from one panel to another. It follows standard RS-485 topology rules. The L2-CBA Comm Bus Adapter allows the 10-pin Comm connector at the top and bottom of the PDM to be transformed into an RJ45 jack. The RJ45 connectors allow the bus to extend longer distances.
| CONNECTORS | ||
| PDM Comm Bus connectors | (2) Female 10 pin | |
| RJ-45 connectors | Female 8 pin | |
| RS485 CONTROL BUS | ||
| Communication Speed | 38,400 bps | |
| Maximum total bus length | 2000ft (610m) | |
| Maximum devices per PDMbus | 100 across entire bus | |
| PHYSICAL/ENVIRONMENTAL | ||
| Dimensions | 3.5 x 2.75 x 1in (89 x 69 x 25mm) | |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) | |
| Operating Humidity | 5% to 95% Non-condensing | |
| Rating | Dry Rated | |
| Environmental | RoHS | |
| Safety Certifications | CE, FCC | |
| WARRANTY | ||
| Duration | 5 Years |
