L3-TP-1111-D

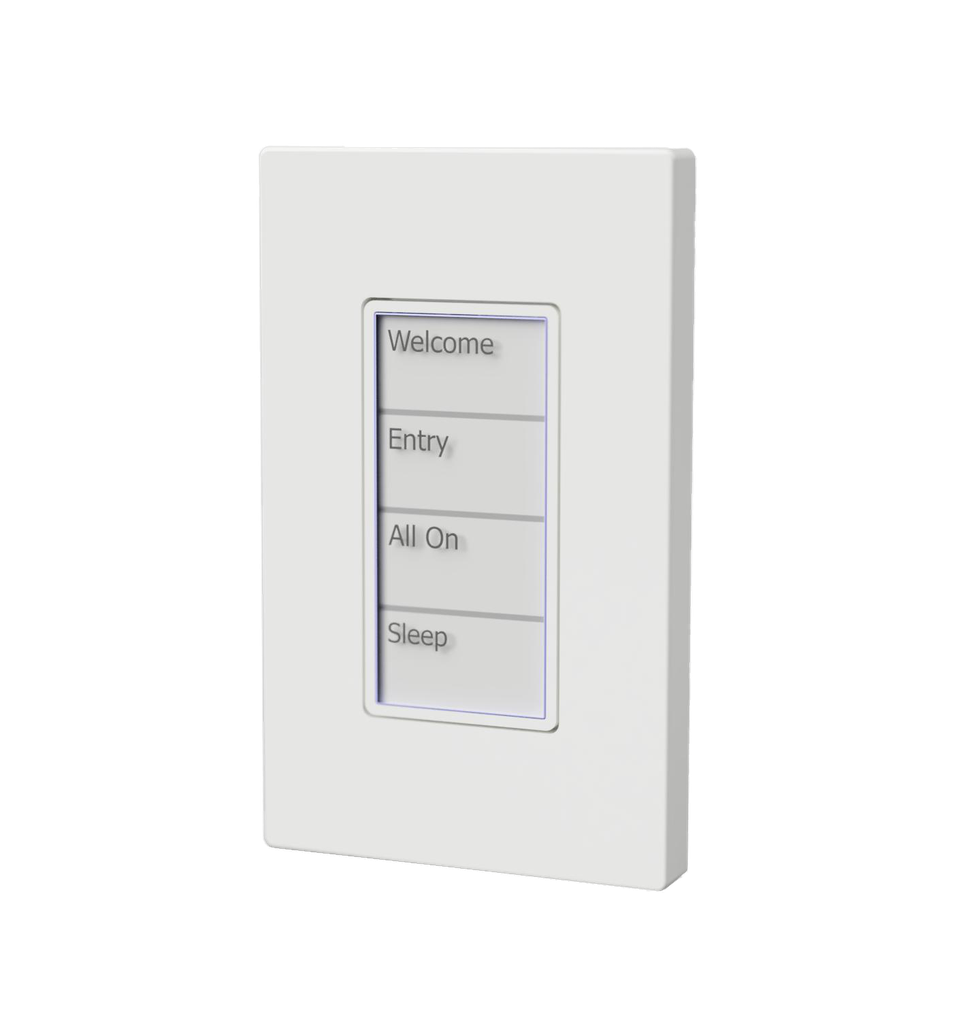

Wall TouchPad, 4 button, 1111 layout, Decora
Wall touchpad has 4 gently backlit touch zones with a positive indication of button presses. Use with an L2-DM to control zones of lights or lighting scenes. For multiple keypad locations, simply add more L3-TP4-D to the Cat5/6 wire. Each unit has a selector switch to choose between buttons 1-4 and 5-8, allowing up to 8 button actions to be sensed by the L2-DM at the PDM. Two RJ45 jacks on the back allow touchpads to be connected in series, or connect a splitter/combiner to join two wires into a single PDM port. The L3-TP4-D can be installed in any orientation. Lights can be powered passing through touchpads but it is recommended to place touchpads and switches after lights as the wires leave the PDM ports. Refer to the system overview to understand how LumenCache inputs and outputs apply to wiring design. Two rim colors are available. Custom rim colors are available for special order. Use any standard Decora-style cover plates. The tempered glass touch face can have custom artwork and is quickly field replaceable.
Inserting custom or other faceplate (video).
| ELECTRICAL | ||
| Voltage | 5VDC, 12VDC from L2-APR at the PDM | |
| Power | 0.1W | |
| Input Module | Use L2-DM at the PDM Socket | |
| PHYSICAL/ENVIRONMENTAL | ||
| Cover plate shape | Decora style and shape | |
| Construction | Metal carrier, tempered glass face | |
| Height | 106 mm | |
| Width | 44.3 mm | |
| Depth | 16.19 mm | |
| Operating temperature | 32°F to +122°F (0°C to +50°C) | |
| Operating Humidity | 5% to 95% Non-condensing | |
| Safety Certifications | FCC, CE | |
| Rating | Dry Rated | |
| WARRANTY | ||
| Duration | 5 Years |
