L2-ENC-28-DOOR
Locking Door for L2-ENC-28 LibRE enclosure

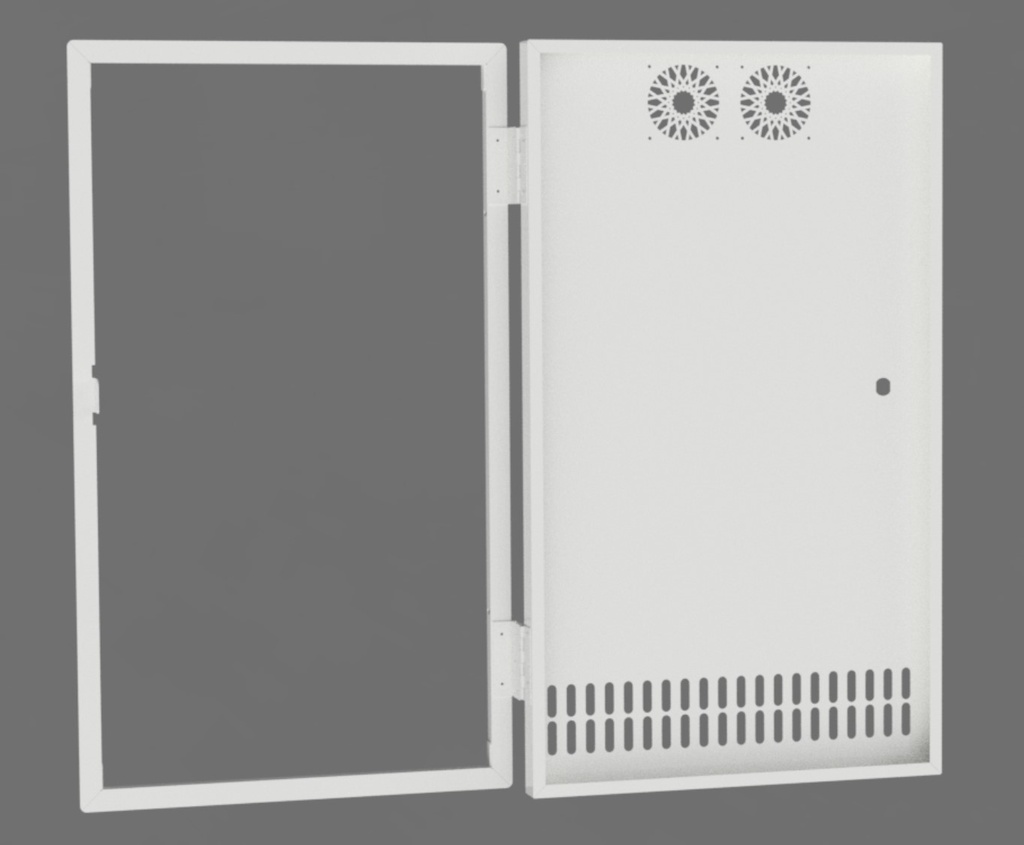

The locking door provides protection and ventilation of the component inside the L2-ENC28 enclosure. The door includes a wall trim for a clean installation during the finish phase of construction. The door is installed with the hinge at the right and the LumenCache logos at the top. If one or more Power Distribution Modules (PDM) are installed in the enclosure, an L2-ENCFAN2 Fan Kit must be used to ensure adequate component temperature is maintained. The enclosure back box, door, and fan kits are provided separately to match the installation phase of typical construction.
| PHYSICAL | ||
| Construction | Painted Steel, White | |

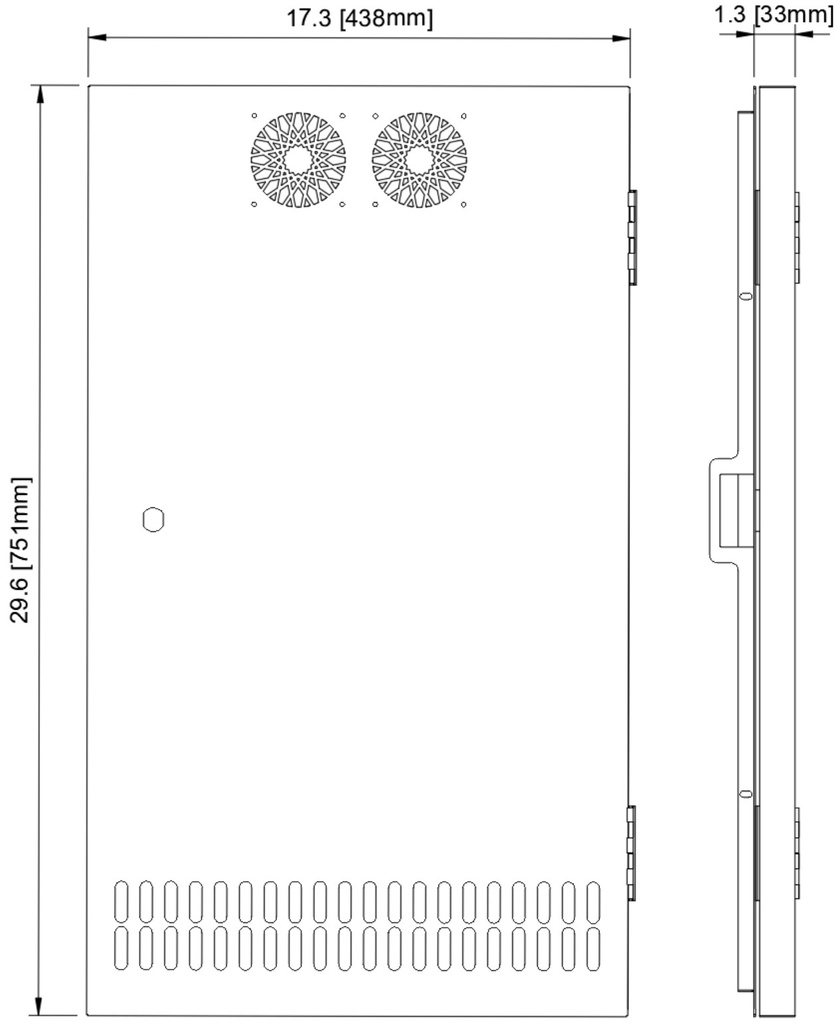

| Height | 29.6 in (751 mm) | |
| Width | 17.3 in (438 mm) | |
| Depth | 1.3 in (33 mm) | |
| Door Position | Wall surface. Hinge at left | |
| ENVIRONMENTAL | ||
| Operating Temperature | +32°F to +122°F (0°C to +50°C) | |
| Operating Humidity | 5% to 95% Non-condensing | |
| Safety Certifications | ANSI/UL 2108, UL/CSA 60950-1, | |
| CAN/CSA C22.2#250.13, | ||
| CSA C22.2#9.0, CSA C22.2#223 | ||
| Rating | Dry Rated | |
| WARRANTY | ||
| Duration | 20 Years - Enclosure | |
| 7 Years - Fans |
