L2-CC

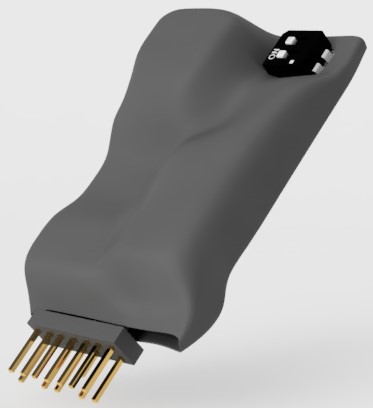

The L2-CC driver converts main PDM power into constant current regulated power.  It plugs into a Power Distribution Module (PDM) Socket and sends power to one or more LEDs attached to the associated RJ45 Port.  This is used for LED fixtures requiring constant current where a driver or regulator is not inside the bulb.  This module does not require an L2-APR.  Its output level is controlled by a Channel Zone Controller like an L2-DM, L2-SW, or L2-CH16.  The L2-CC driver automatically adjusts its power output to maintain accurate current regardless of the length of Cat5/6 attached. This ensures consistent fixture intensity.  Small LED lights can be connected in Series.  LEDs in series must have an identical Current requirement of each other and the L2-CC current DIP switches must be set to match the LED current requirement.  L2-CC are full range buck-boost drivers so the total attached LED voltage can be anywhere from the minimum to the maximum total voltage.  Choose from 75mA, 150mA, 300mA, or 600mA current settings.

Select the current setting to match the fixtures attached to the port.  See the labels on the fixtures for the current requirements.  If the LED is higher than one of the settings, use the setting below the LED fixture current.  For example: if the fixture current is 400mA, choose the 300mA setting (also the default).
