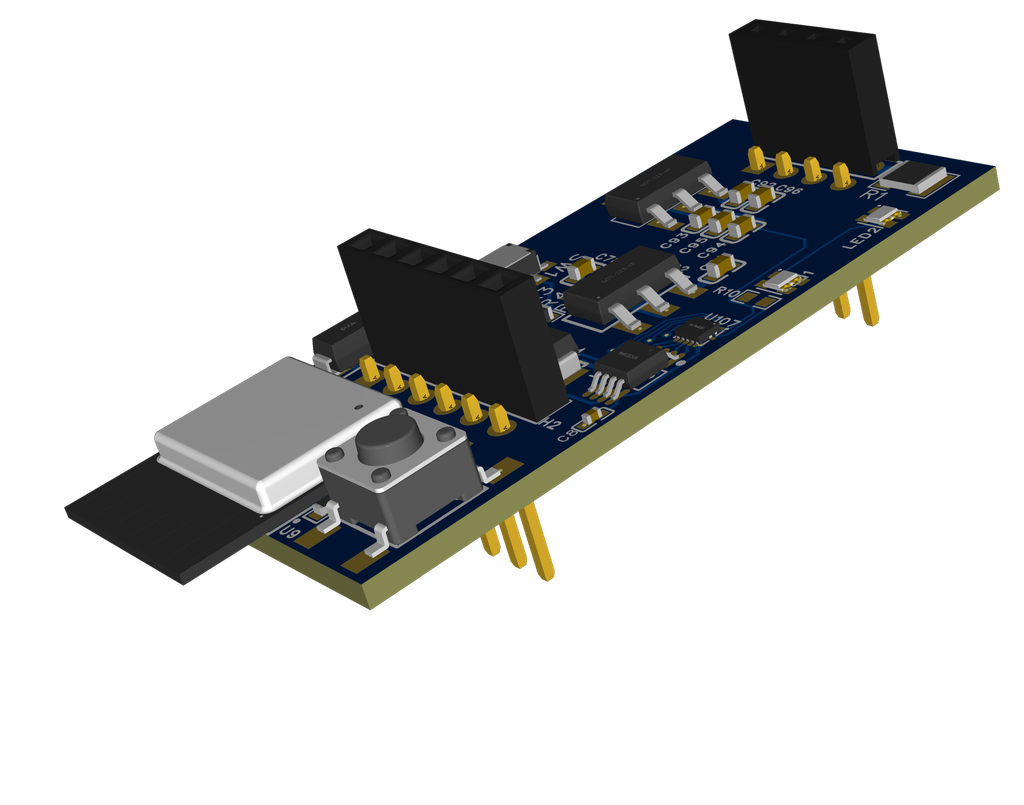

Instantly add remote control and access to your LibRE system by this device. It plugs in under an L2-APR in the PDM, then connects to your wireless LAN. After connection, the L2-APM polls your connected L2-DMs and creates an MQTT client which can be operated standalone, or through smarthome apps like Home Assistant.
| POWER REQUIREMENTS | ||
| Peak Power Consumed | 1 W (1W Peak) | |
| Works with 6W or 12W L2-APR | ||
| Average Power Consumed | 0.2 W | |
| Input, Output Connectors | 4Pin, 6Pin Headers under L2-APR | |
| RS485 CONTROL BUS | ||
| Communication Speed | 38,400 bps | |
| Control Protocol | Published LCbus protocol | |
| Maximum devices per PDMbus | 100 | |
| NETWORK | ||
| Wireless | 2.4GHz and 5GHz 802.11 b/g/n/ac | |
| Access | AWS Services (optional) | |
| PHYSICAL/ENVIRONMENTAL | ||
| Dimensions | 1 x 3 x 0.5in (28 x 52 x 10mm) | |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) | |
| Operating Humidity | 5% to 95% Non-condensing | |
| Rating | Dry Rated | |
| Environmental | RoHS | |
| Safety Certifications | CE, FCC | |
| WARRANTY | ||
| Duration | 5 Years |
